MCP 学习

发表于 分类于 ，

MCP 是什么

  让我们来回顾一下 MCP 的概念，MCP 是 Model Context Protocol，翻译成中文就是模型上下文协议。简单来说，MCP 就是让大模型能更好地使用各类工具的一个协议。MCP 协议中有 MCP Server 和 MCP Client。

  MCP Server 只是一个应用程序而已，其执行符合 MCP 协议。MCP Server 中包含多个 Tool，每个 Tool 都可以实现不同的功能。在 Cline 中可以安装不同 MCP Server 来实现模型拥有不同功能。

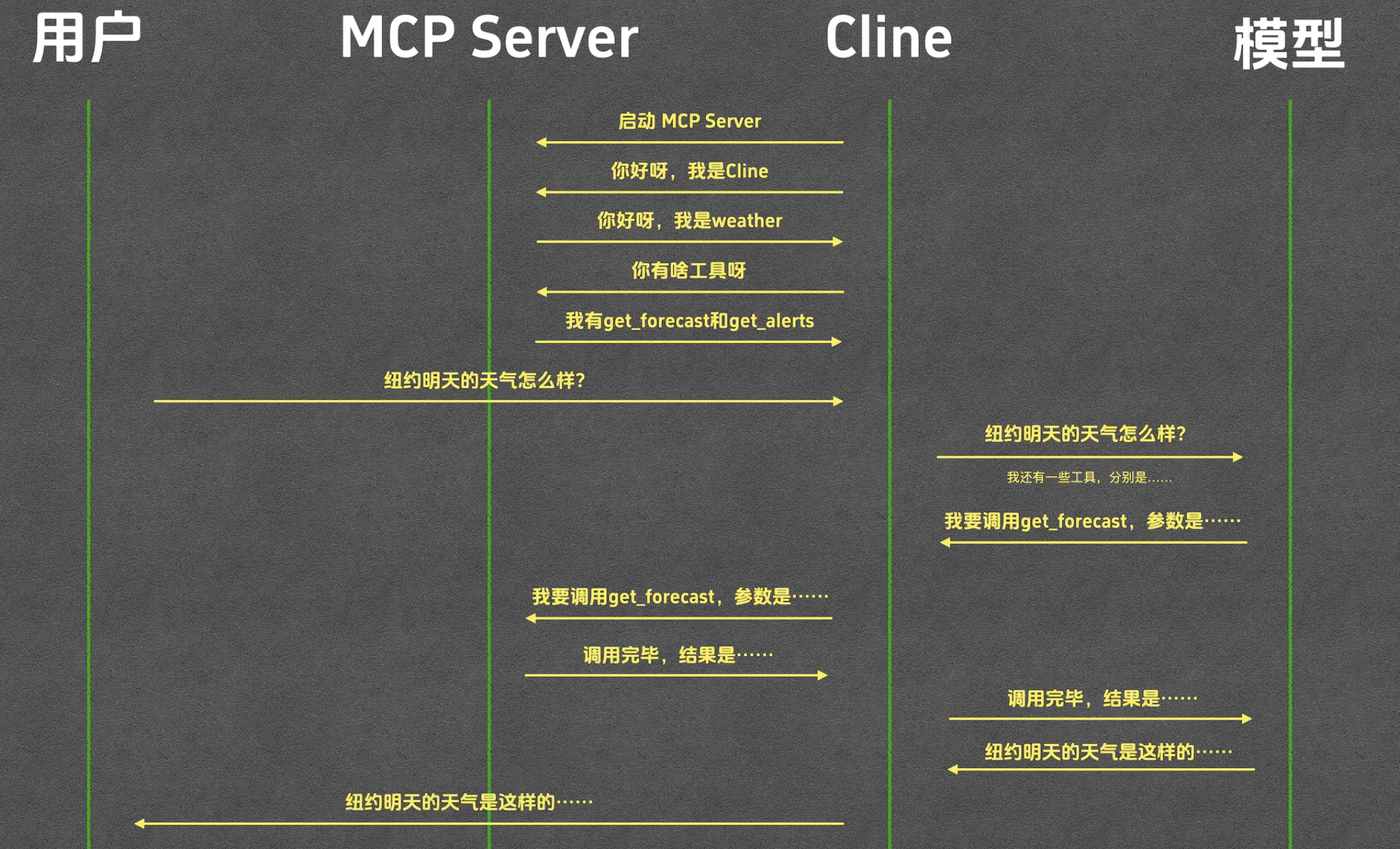

  接下来我们来详细看一下 MCP 地交互流程。以获取天气为例，MCP Server 中有两个工具 get_forecast 和 get_alerts。当 Cline 启动时，会启动 MCP Server，并确定工具列表。用户提出问题到 cline，cline 再将问题加上注册好的 MCP_Server、工具列表信息转发给模型，于是模型会让 cline 调用这两个工具获得答案，工具返回答案给 cline，cline 再转发给模型，最后模型生成一份自然语言报告，并发送给 cline，最终 cline 发送给用户。

  

图 1 完整调用流程
  

动手写一个 MCP Server

  接下来我们来手动写一个 MCP 实现查询天气的程序。新建文件夹，进入后在终端输入

uv init weather
uv venv
uv add "mcp[cli]" httpx

  再使用 vscode 打开 weather 文件夹就可以进行开发了。新建 weather.py 文件，写入以下代码

1
2
3
4
5
6
7
8
9
10
11
from typing import Any
import httpx
from mcp.server.fastmcp import FastMCP

# 创建 MCP 服务器对象，weather 是名字，log_level 表示只有错误会被记录在日志中。
mcp = FastMCP("weather", log_level="ERROR")

# 美国天气 API
NWS_API_BASE = "https://api.weather.gov"‘
# 表示什么应用在访问 API
USER_AGENT = "weather-app/1.0"

  接下来我们实现发送请求函数：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
# 向 NWS 天气 API 发起请求
# 核心任务：访问 url，得到返回结果，转换为 Python 字典，如果失败就返回 none
# async 表示这是一个异步函数
async def make_nws_request(url: str) -> dict[str, Any] | None:
    """Make a request to the NWS API with proper error handling."""

    # 请求头，告诉服务器身份、想要的数据格式
    headers = {
        "User-Agent": USER_AGENT,
        "Accept": "application/geo+json"
    }

    # 创建一个异步 HTTP 客户端，用完后自动关闭连接。
    async with httpx.AsyncClient() as client:
        try:
            # 发送请求
            response = await client.get(url, headers=headers, timeout=30.0)
            # 检测是否异常
            response.raise_for_status()
            # 将 JSON 字符串转换为字典并返回
            return response.json()
        except Exception:
            return None

  接下来我们实现将预警信息转为字符串的函数。

1
2
3
4
5
6
7
8
9
10
# 天气预警数据转字符串
def format_alert(feature: dict) -> str:
    props = feature["properties"]
    return f"""
Event: {props.get('event','unkown')}
Area: {props.get('areaDesc','unkown')}
Severity: {props.get('severity','unkown')}
Description: {props.get('description','unkown')}
Instructions: {props.get('instruction','unkown')}
"""

  接下来我们第一个 Tool：get_alerts，其用于获取美国某个州的天气预警信息。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@mcp.tool()
async def get_alerts(state: str) -> str:
    """Get weather alerts for a US state.

    Args:
        state: Two-letter US state code (eg CA,NY)
    """

    url = f"{NWS_API_BASE}/alerts/active/area/{state}"
    data = await make_nws_request(url)

    if not data or "features" not in data:
        return "Unable to fetch alerts or no alerts found."

    if not data["features"]:
        return "No active alerts for this state."

    alerts = [format_alert(feature) for feature in data["features"]]
    # 把结果用 --- 分割
    return "\n---\n".join(alerts)

  接下来我们编写第二个 Tool，获取具体地点的天气信息：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
@mcp.tool()
async def get_forecast(latitude: float, longitude: float) -> str:
    """Get weather forecast for a location.

    Args:
        latitude:Latitude of the location
        longitude:Longitude of the location
    """
    # 首先获取信息
    points_url = f"{NWS_API_BASE}/points/{latitude},{longitude}"
    points_data = await make_nws_request(points_url)

    if not points_data:
        return "Unable to fetch data for this location"

    forecast_url = points_data["properties"]["forecast"]
    forecast_data = make_nws_request(forecast_url)

    if not forecast_data:
        return "Unable to fetch data."

    periods = forecast_data["properties"]["periods"]
    forecasts = []
    for period in periods[:5]:  # Only show next 5 periods
        forecast = f"""
{period['name']}:
Temperature: {period['temperature']}°{period['temperatureUnit']}
Wind: {period['windSpeed']} {period['windDirection']}
Forecast: {period['detailedForecast']}
"""
        forecasts.append(forecast)

    return "\n---\n".join(forecasts)

if __name__ == "__main__":
    mcp.run(transport = 'stdio')

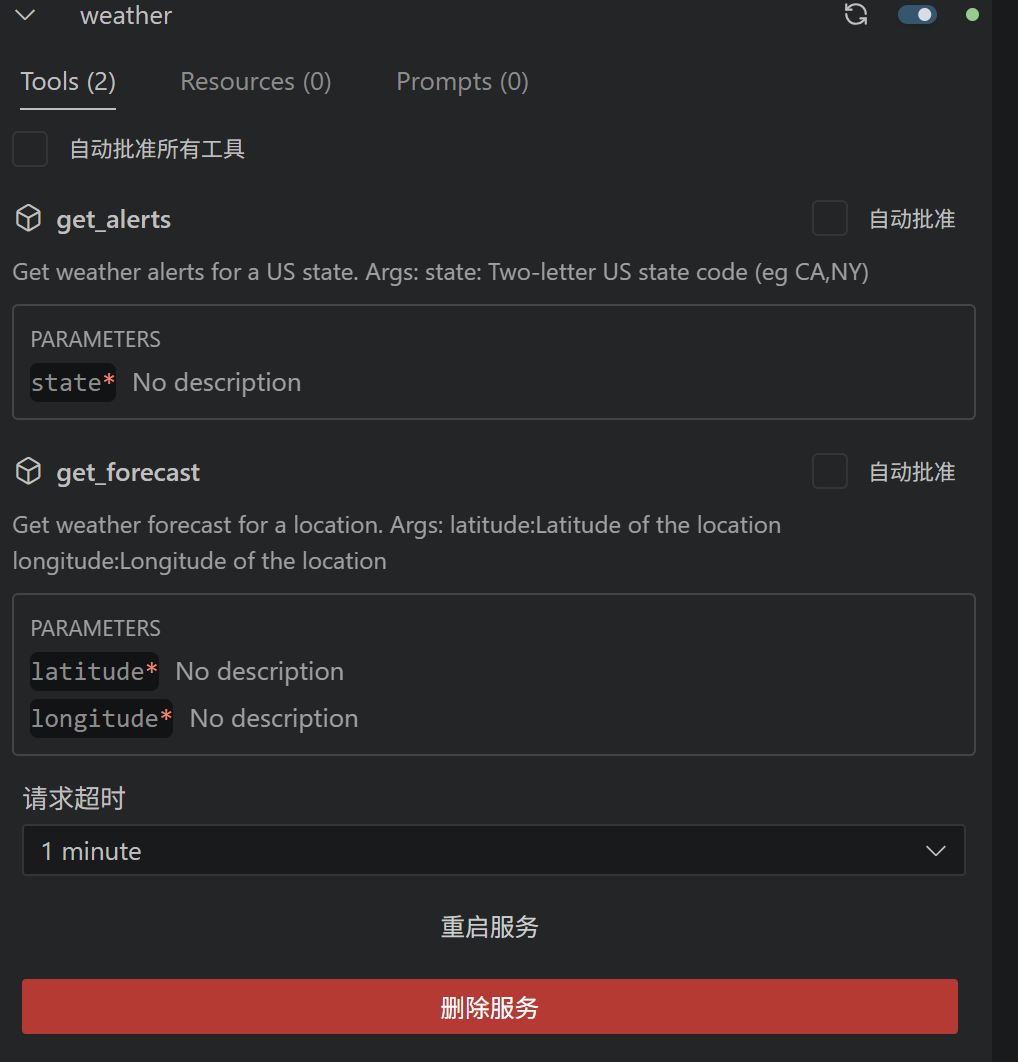

  接下来将工具添加到 Cline 中，这一步就不具体演示了。

  

图 2 成功添加到 Cline
  

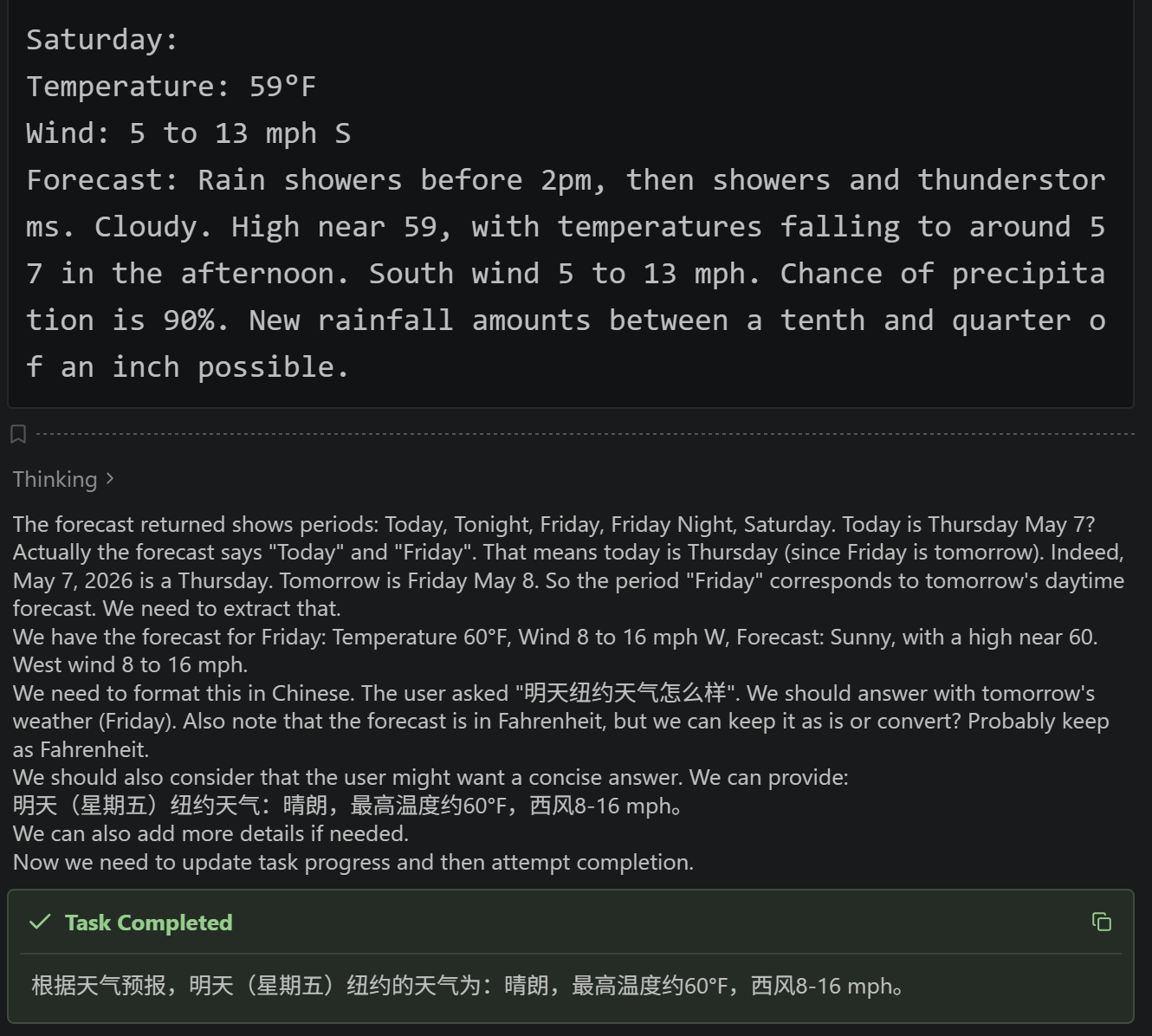

  接下来询问大模型“明天纽约天气怎么样？”，可以看到大模型调用工具的过程：

  

图 3 调用工具
  

Cline 与 MCP Server 的交互

  为了研究 MCP Server 和 Cline 的数据交互，我们使用 AI 来写一个中间程序，具体实现如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
"""
MCP Logger - A proxy that sits between Cline and an MCP Server,
logging all communication (stdin/stdout) to a file.

Usage:
  python mcp_logger.py <command> [args...]

Example in MCP settings, replace:
  "command": "uv", "args": ["--directory", "E:/python_learn/MCP/weather/", "run", "weather.py"]
With:
  "command": "python", "args": ["E:/python_learn/MCP/weather/mcp_logger.py", "uv", "--directory", "E:/python_learn/MCP/weather/", "run", "weather.py"]
"""

import sys
import subprocess
import threading
import os
import time
from datetime import datetime

# Log file path
LOG_DIR = os.path.dirname(os.path.abspath(__file__))
LOG_FILE = os.path.join(LOG_DIR, "mcp_log.log")


def log(direction: str, data: bytes):
    """Write a log entry with timestamp and direction."""
    timestamp = datetime.now().strftime("%Y-%m-%d %H:%M:%S.%f")[:-3]
    try:
        text = data.decode("utf-8")
    except UnicodeDecodeError:
        text = repr(data)
    with open(LOG_FILE, "a", encoding="utf-8") as f:
        f.write(f"[{timestamp}] {direction}\n{text}\n{'='*80}\n")


def forward_stdin(proc):
    """Read from our stdin (Cline) and forward to the child process (MCP Server)."""
    try:
        while True:
            data = sys.stdin.buffer.read(1)
            if not data:
                proc.stdin.close()
                break
            # Buffer: read all available data
            remaining = sys.stdin.buffer.read1(65536) if hasattr(sys.stdin.buffer, 'read1') else b""
            chunk = data + remaining
            log("CLIENT -> SERVER", chunk)
            proc.stdin.write(chunk)
            proc.stdin.flush()
    except (OSError, ValueError):
        pass


def forward_stdout(proc):
    """Read from child process stdout (MCP Server) and forward to our stdout (Cline)."""
    try:
        while True:
            data = proc.stdout.read(1)
            if not data:
                break
            remaining = proc.stdout.read1(65536) if hasattr(proc.stdout, 'read1') else b""
            chunk = data + remaining
            log("SERVER -> CLIENT", chunk)
            sys.stdout.buffer.write(chunk)
            sys.stdout.buffer.flush()
    except (OSError, ValueError):
        pass


def forward_stderr(proc):
    """Read from child process stderr and log it."""
    try:
        while True:
            data = proc.stderr.read(1)
            if not data:
                break
            remaining = proc.stderr.read1(65536) if hasattr(proc.stderr, 'read1') else b""
            chunk = data + remaining
            log("SERVER STDERR", chunk)
            sys.stderr.buffer.write(chunk)
            sys.stderr.buffer.flush()
    except (OSError, ValueError):
        pass


def main():
    if len(sys.argv) < 2:
        print("Usage: python mcp_logger.py <command> [args...]", file=sys.stderr)
        sys.exit(1)

    cmd = sys.argv[1:]

    with open(LOG_FILE, "w", encoding="utf-8") as f:
        f.write(f"MCP Logger started at {datetime.now().isoformat()}\n")
        f.write(f"Command: {' '.join(cmd)}\n")
        f.write(f"{'='*80}\n")

    proc = subprocess.Popen(
        cmd,
        stdin=subprocess.PIPE,
        stdout=subprocess.PIPE,
        stderr=subprocess.PIPE,
    )

    t_in = threading.Thread(target=forward_stdin, args=(proc,), daemon=True)
    t_out = threading.Thread(target=forward_stdout, args=(proc,), daemon=True)
    t_err = threading.Thread(target=forward_stderr, args=(proc,), daemon=True)

    t_in.start()
    t_out.start()
    t_err.start()

    proc.wait()
    # Give threads time to flush
    t_out.join(timeout=2)
    t_err.join(timeout=2)

    with open(LOG_FILE, "a", encoding="utf-8") as f:
        f.write(f"\nMCP Logger ended at {datetime.now().isoformat()}, exit code: {proc.returncode}\n")

    sys.exit(proc.returncode)


if __name__ == "__main__":
    main()

  接下来我们再问一遍 “明天纽约天气怎么样”，可以看到 log 文件中出现了完整的数据。其中，Client 表示 Cline，Server 就是本地运行的 weather.py MCP Server。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
MCP Logger started at 2026-05-08T14:40:13.330040
Command: uv --directory E:/python_learn/MCP/weather/ run weather.py

# 平台向服务器发送信息，表明 MCP 协议版本、平台自身信息等等。
[2026-05-08 14:40:13.341] CLIENT -> SERVER
{"jsonrpc":"2.0","id":0,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{"elicitation":{}},"clientInfo":{"name":"codex-mcp-client","title":"Codex","version":"0.129.0-alpha.15"}}}

# 服务器向平台发送消息，表明 MCP 协议版本，表明自身不支持的能力，发送服务器的信息。
[2026-05-08 14:40:14.179] SERVER -> CLIENT
{"jsonrpc":"2.0","id":0,"result":{"protocolVersion":"2025-06-18","capabilities":{"experimental":{},"prompts":{"listChanged":false},"resources":{"subscribe":false,"listChanged":false},"tools":{"listChanged":false}},"serverInfo":{"name":"weather","version":"1.27.0"}}}

# 平台表明收到
[2026-05-08 14:40:14.179] CLIENT -> SERVER
{"jsonrpc":"2.0","method":"notifications/initialized"}

# 平台想要进一步获取工具列表
[2026-05-08 14:40:14.179] CLIENT -> SERVER
{"jsonrpc":"2.0","id":1,"method":"tools/list","params":{"_meta":{"progressToken":0}}}


[2026-05-08 14:40:14.181] SERVER -> CLIENT
{
    "jsonrpc": "2.0",
    "id": 1,
    "result": {
        "tools": [
            {
                # 工具 1
                "name": "get_alerts",
                "description": "Get weather alerts for a US state.\n\nArgs:\n    state: Two-letter US state code (eg CA,NY)\n",
                # 用于描述 input json 的格式
                "inputSchema": {
                    "properties": {
                        "state": {
                            "title": "State",
                            "type": "string"
                        }
                    },
                    "required": [
                        "state"
                    ],
                    "title": "get_alertsArguments",
                    "type": "object"
                },
                "outputSchema": {
                    "properties": {
                        "result": {
                            "title": "Result",
                            "type": "string"
                        }
                    },
                    "required": [
                        "result"
                    ],
                    "title": "get_alertsOutput",
                    "type": "object"
                }
            },
            {
                # 工具 2
                "name": "get_forecast",
                "description": "Get weather forecast for a location.\n\nArgs:\n    latitude:Latitude of the location\n    longitude:Longitude of the location\n",
                "inputSchema": {
                    "properties": {
                        "latitude": {
                            "title": "Latitude",
                            "type": "number"
                        },
                        "longitude": {
                            "title": "Longitude",
                            "type": "number"
                        }
                    },
                    "required": [
                        "latitude",
                        "longitude"
                    ],
                    "title": "get_forecastArguments",
                    "type": "object"
                },
                "outputSchema": {
                    "properties": {
                        "result": {
                            "title": "Result",
                            "type": "string"
                        }
                    },
                    "required": [
                        "result"
                    ],
                    "title": "get_forecastOutput",
                    "type": "object"
                }
            }
        ]
    }
}

# 询问有无资源可以使用
[2026-05-08 14:40:14.973] CLIENT -> SERVER
{"jsonrpc":"2.0","id":2,"method":"resources/list","params":{"_meta":{"progressToken":1}}}

# 询问有无资源模板可以使用
[2026-05-08 14:40:14.974] CLIENT -> SERVER
{"jsonrpc":"2.0","id":3,"method":"resources/templates/list","params":{"_meta":{"progressToken":2}}}

[2026-05-08 14:40:14.977] SERVER -> CLIENT
{"jsonrpc":"2.0","id":2,"result":{"resources":[]}}

[2026-05-08 14:40:14.978] SERVER -> CLIENT
{"jsonrpc":"2.0","id":3,"result":{"resourceTemplates":[]}}

# 平台调用 get_forecast 工具并输入经纬度
[2026-05-08 15:02:34.565] CLIENT -> SERVER
{"method":"tools/call","params":{"name":"get_forecast","arguments":{"latitude":40.7128,"longitude":-74.006}},"jsonrpc":"2.0","id":5}

[2026-05-08 15:02:36.344] SERVER -> CLIENT
{"jsonrpc":"2.0","id":5,"result":{"content":[{"type":"text","text":"\nOvernight:\nTemperature: 50°F\nWind: 8 mph N\nForecast: A slight chance of rain showers before 5am. Mostly cloudy, with a low around 50. North wind around 8 mph. Chance of precipitation is 20%.\n\n---\n\nFriday:\nTemperature: 60°F\nWind: 8 to 17 mph W\nForecast: Mostly sunny, with a high near 60. West wind 8 to 17 mph.\n\n---\n\nFriday Night:\nTemperature: 51°F\nWind: 2 to 15 mph S\nForecast: A slight chance of rain showers after 2am. Mostly cloudy. Low around 51, with temperatures rising to around 54 overnight. South wind 2 to 15 mph. Chance of precipitation is 20%.\n\n---\n\nSaturday:\nTemperature: 60°F\nWind: 6 to 13 mph S\nForecast: Rain showers likely before 2pm, then showers and thunderstorms. Cloudy. High near 60, with temperatures falling to around 56 in the afternoon. South wind 6 to 13 mph. Chance of precipitation is 90%. New rainfall amounts between a tenth and quarter of an inch possible.\n\n---\n\nSaturday Night:\nTemperature: 53°F\nWind: 5 to 12 mph SW\nForecast: Showers and thunderstorms likely before 2am. Mostly cloudy, with a low around 53. Southwest wind 5 to 12 mph. Chance of precipitation is 70%. New rainfall amounts between a tenth and quarter of an inch possible.\n"}],"structuredContent":{"result":"\nOvernight:\nTemperature: 50°F\nWind: 8 mph N\nForecast: A slight chance of rain showers before 5am. Mostly cloudy, with a low around 50. North wind around 8 mph. Chance of precipitation is 20%.\n\n---\n\nFriday:\nTemperature: 60°F\nWind: 8 to 17 mph W\nForecast: Mostly sunny, with a high near 60. West wind 8 to 17 mph.\n\n---\n\nFriday Night:\nTemperature: 51°F\nWind: 2 to 15 mph S\nForecast: A slight chance of rain showers after 2am. Mostly cloudy. Low around 51, with temperatures rising to around 54 overnight. South wind 2 to 15 mph. Chance of precipitation is 20%.\n\n---\n\nSaturday:\nTemperature: 60°F\nWind: 6 to 13 mph S\nForecast: Rain showers likely before 2pm, then showers and thunderstorms. Cloudy. High near 60, with temperatures falling to around 56 in the afternoon. South wind 6 to 13 mph. Chance of precipitation is 90%. New rainfall amounts between a tenth and quarter of an inch possible.\n\n---\n\nSaturday Night:\nTemperature: 53°F\nWind: 5 to 12 mph SW\nForecast: Showers and thunderstorms likely before 2am. Mostly cloudy, with a low around 53. Southwest wind 5 to 12 mph. Chance of precipitation is 70%. New rainfall amounts between a tenth and quarter of an inch possible.\n"},"isError":false}}

  在最后，Cline 拿到返回结果后与 MCP 的交互就结束了，Cline 会将这个结果发送给大模型，让模型来总结。

结语

  综上所述，MCP 协议主要规定了以下两个内容。
  1、每一个 MCP Server 有哪些函数可以使用。
  2、如何调用这些函数。
  需要注意的是，MCP 协议只规定了 MCP Server 和 平台如何通信，与模型无关。
